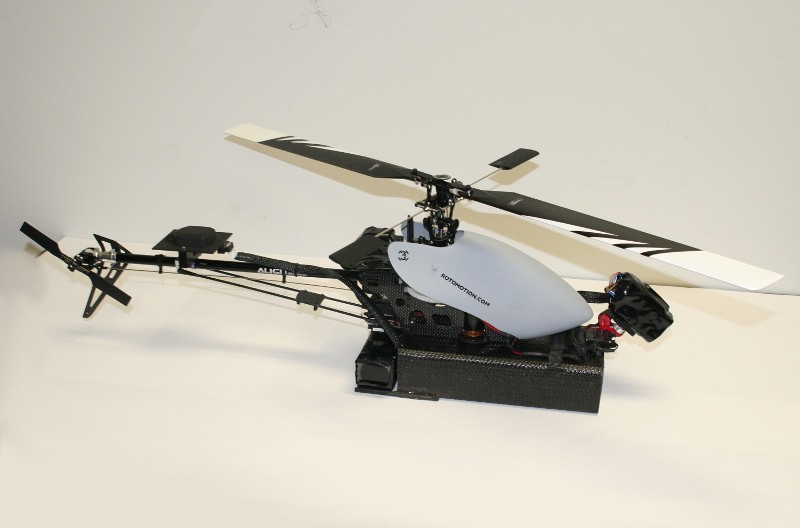

| Untitled document SR5 "Parvus" UAV Electric Helicopter System Features: Electric Propulsion Motor
up to 2 lbs Payload Capacity
WAAS differential included
Ready-to-Fly Autonomous
Safety/Manual Aircraft Controller & Transmitter
802.11-based Telemetry System
Stable hover with a relative momentary velocity and position less than +/- 2 cm/s
10 Knots Top Speed
Low maintenance costs
1 year software maintenance subscription Options: Pan Camera Platform with Virtual Pan
Numerous video display and downlink options available
Pilot Training/certification
Autotakeoff/Autoland Specifications:
Length 658 mm, 27”
Width 114mm, 4.5”
Height 254 mm, 10”
Main Rotor (M/R) Diameter 787 mm, 31”
Tail Rotor (M/R) Diameter 159 mm, 6.25”
Transmission Direct Drive
Tail Rotor Shaft Drive
Dry Weight 1.8 Kg, 4 Lbs
Engine 440W Electric Motor (25V)
Energy Capacity 3.3 Ah, 25V Battery
Climb Rate 122 mpm, 400 fpm (AFCS regulated)
Maximum Speed 11 mps, 36 fps [40 kph, 25 mph] (AFCS regulated)
Endurance: With Sony Camera (see Payload) 20 minutes
Payload Sony FCB – ix 11AP Day Video Camera
Telemetry: 802.11-based, 800m, 875yards, LOS range. Long range options available up to 4K range.
Flight Control Software: Fully autonomous flight with auto-takeoff and landing, unlimited number of programmable waypoints, “point and click” waypoints on map overlay, joystick control.
Ground Control Software: Included with system and provides command and control and sensor data on screen with audible warning system.
Safety Controller 2.4 GHz DSM2, 800yards, LOS range
|
