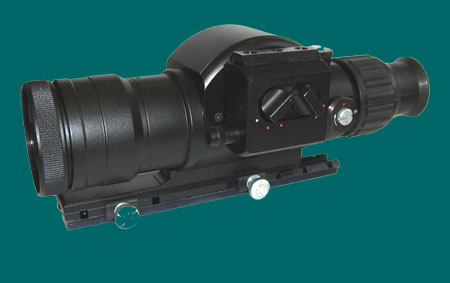

The most advanced and affordable Day/Night rifle scope has a number of innovations and inventions. Unlike other day/night rifle scopes on the market it doesn’t require swapping detachable parts in order to convert it from a day mode into a night mode. The built-in optical equalizer allows maintaining a sight at night and in the afternoon without additional adjustment of lens and eyepiece. To operate simply flipping a switch to convert it from a day mode to a night mode.
Based on compact design the SM-3S2 D/N allows shooting in daylight and at night without dismounted of riflescope and adjustment of mark.
The unique riflescope has a flat image by all field of view, red-lit reticle with regulation of brightness; light overload (flash) protection-automatic shut off, universal mount.
Features: ● shock resistance 600 G ● resolution is against the basic model more by 33% and gain more by 25% ● long-range of supervision ● the built-in red lit reticle with adjustable brightness control ● special light-powerful optics without distortion ● precision windage/elevation adjustment ● photo-sensitive sensor for protection of the image tube from accidental light overload
Specifications: | Generation | 2+ Super Gen. | | Photocathode | S-25 Multi-alkaline | | Magnification | 4X | | Field of view | 12 deg. | | Resolution | 53 lp/mm | | Gain | Min. 25 300 | | Max. viewing distance at night (0.005Lx) | 300 m | | Max. viewing distance in daylight | 500 m | | Diopter adjustment | +/-3 diopter | | Battery | 3V, CR123A | | Operating temperatures range | -30 to +45 deg. | Sighting line correction scale value
in the vertical and in the horizontal | 2.5 cm on a distance of 100 m | | Dimensions | (270x100)mm | | Weight | 1 kg |

The mounts are weaver types.
|
