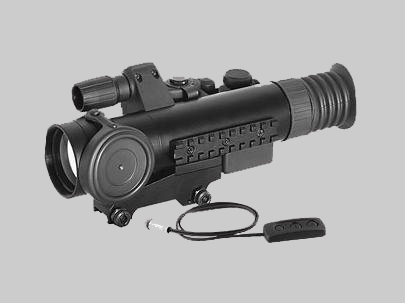

Untitled document Night vision riflescope Sentinel G2+ 3x50 features optimal 3x magnification and high light gathering capacity. The Sentinel G2+ 3x50 uses an EPM66G2 (Gen.2+) tube with the light magnification factor not less than 25 000 and total responsivity of the photocathode 400 – 550 µA/lm. Lifetime IIT is 10 000 hours. The image intensifier tube and optics are enclosed in a titanium housing which provides high performance qualities of the riflescope. The Sentinel G2+ possesses high impact resistance and can be mounted on a hunting gun of various calibers (up to .375) with the muzzle energy of the bullet up to 6000 Joules. The high-aperture 50 mm objective lens with internal focusing allows obtaining a sharp picture at different distances (starting from 5 meters). It is reasonable to use the integrated IR Illuminator for observation or shooting in low levels of night luminance. The riflescope and IR Illuminator are switched on by a knob recessed in the housing which prevents the unit from accidental switching or with help of the remote control. The Sentinel G2+ has a brightness control option and a range-finding scale which facilitates adjustment when shooting at different distances provided the shooter knows the size of the target. The color of the reticle can be changed by a simple push of the button. It is an advisable to change the color of the reticle depending on the surrounding conditions. Red is the best when used in clear viewing conditions, green is preferable for use viewing is obscured. 26125 features a Mil-Dot reticle. The Sentinel G2+ 2,5x50 has a wide range of mounts for weapon, including Weaver 7/8” (3 modifications), AK Side Mount, «Los» Mount, and Prism 14/200 Mount. POWER SUPPLY A stabilized power supply ensures up to 70 hours of full operation. This prevents reticle shift, change of its brightness even when the battery is nearly empty. OBJECTIVE LENS CAP The cap is fastened on a rigid plastic ring dipped into the groove in the objective of the covering. This secures the cap from being lost. There is no need to remove the cap when viewing or shooting - you can simply slide it back and fix anywhere on the objective housing. WEAVER 7/8” RAIL The riflescope has an extra 7/8” Weaver rail placed on the left side of the body and is designed for mounting accessories (IR illuminator, directional microphone and laser pointer). BUILT-IN IR ILLUMINATOR The built-in IR illuminator makes it possible to use the riflescope in utter darkness. The IR has the function of focusing the light flux, ranging from narrow directed to dispersed. INTERNAL FOCUSING OF THE OBJECTIVE The image focusing mechanism (from 5 m. up to infinity) provides clear image at any distances (including short) within the riflescope's working range. REMOTE CONTROL Along with standard functions, the remote control has a quick start-up function. This is very convenient when constant observation is not conducted in order to find the appropriate position, take aim and shoot.
|
