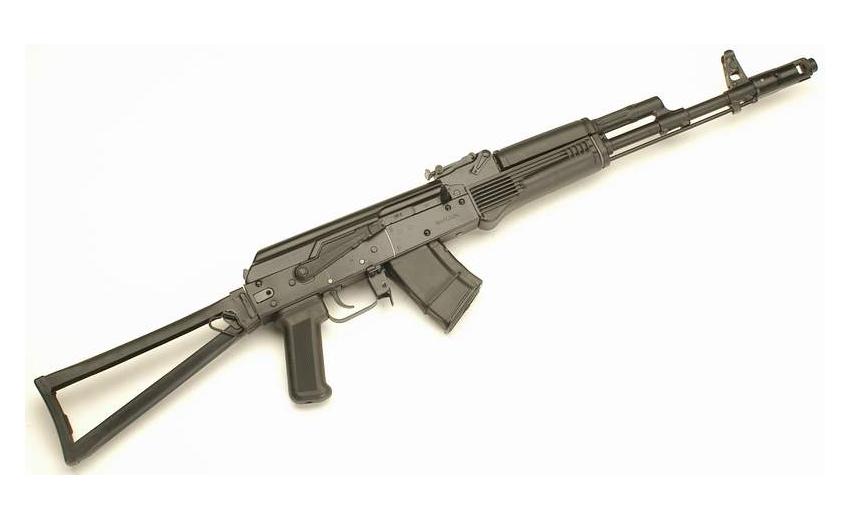

Untitled document The "Saiga" self-loading hunting carbines are designed for hunting under various climatic conditions. The "Saiga" carbines are based on the venerable AK Kalashnikov assault rifle and may come in the following versions: ● "Saiga" is chambered for 7.62x39 and .223 Rem cartridges; ● "Saiga-M", "Saiga-M3", "Saiga-MK" are chambered for 7.62x39 and .223 Rem cartridges; ● "Saiga-308" is chambered for 7.62x51 (.308Win) cartridge; ● "Saiga-9" is chambered for 9x53R cartridge. The specifications of the used cartridges are given in the Table. The carbines are reloaded automatically due to the energy of the powder combustion gases, bled from the barrel bore and the energy of the return spring as well. The barrel bore is locked on turning the bolt round its axis whilst the bolt support slides lengthwise. The trigger and firing mechanism of a hammer type allows it to deliver single-shot fire and to set the carbines at safe. The safety of a lever type is sited on the right side of the receiver. The barrel bore and chamber are chrome-plated. The magazines of a different capacity are made of the impact-resistant polymer or wood (walnut, beech, birch). To make firing more comfortable the wooden butt may be equipped with a cheek and rubber pad. The iron sight consists of the sight leaf and front sight adjustable for windage and elevation. The range of the aimed fire through the iron sight is 300 m. Found on the receiver left side is an unified rail for the optical sight accommodation. The iron sight allows to deliver aimed fire with the optical sight in place. The carbines modifications have different versions of the main assembly units: butt, fore end, front-sight base, etc. Versions of the butt design: ● permanent hunting butt; Additionally, some modifications may have the following butt designs: ● permanent butt and pistol grip of the AK rifle type; ● polymer-or metal-frame butt and pistol grip of the AK rifle type, folding to the left. The length of the rifle with the folded butt is reduced by 240 mm. Versions of the fore end design: ● hunting fore end; ● fore end and gas-tube guard of the AK rifle type. Versions of the front-sight base design: ● with a shot taper flash suppresser; ● with a long cylindrical flash suppresser; ● without flash suppressor; ● integral with gas cylinder. Design features of some modifications and versions: ● "Saiga-M" - the modernized version of "Saiga" carbines having the following changes: the heavier receiver, elongated barrel (555 mm), bolt with three locking lugs; ● "Saiga-M3" - "Saiga-M" version with the folding butt and pistol grip of the AK type; ● "Saiga-MK" - "Saiga-M" version with the shortened barrel (415 mm) and interlocking not allowing to deliver fire with the butt folded; Specifications: Calibre 7,62 x 39 Barrel length 415 mm Rifle total length 960 mm Rifle total length with folded stock 720 mm Weight 3,8 kg Magazine capacity 2 or 10 rds. Muzzle velocity 650 - 730 m/s Muzzle energy 1900 - 2000 J |
