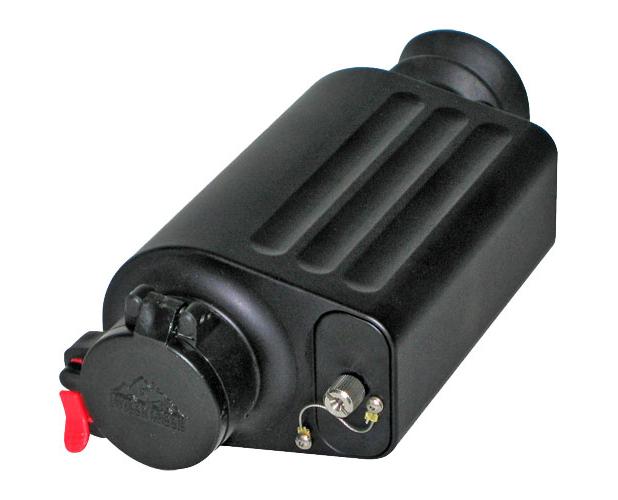

The Recon XT thermal imager is suited to a range of applications including: Law Enforcement, Security and Surveillance and Wildland and Structure Fire.
• Cost-effective, Easy to operate
• Compact and Rugged
• Day or night full image resolution
• Eliminates need for enhanced light
• Full motion real time video
• Adjustable focus, Standby mode
• 2X-5X Customizable Zoom
• Optional spot temperature display
• Selectable polarity, white or black hot
• External power and video jacks
• On screen battery level indicator
• Neck strap and 1/4-20 tripod mount Specifications: | | Recon – XT 11 | Recon – XT 17 | | Focal Lenght | 25 mm | 16 mm | | Field of View | 11°horizontal x 8° Vertical | 17°horizontal x 12° Vertical | | Field of view | 11-8 deg | 17-12 deg |
| Magnification | 2X-5X Customizable Zoom | | Battery | 4 AA | | Battery life | 6 hours | | Dimensions | 165 mm L x 57-76 mm W | | Weight | 680g | | Material & Structure | Amorphous Silicon Microbolometer (160 x 120 pixel array) | | Spectral Response | 7-14 µm | | Thermal Sensitivity | max 0,050 K | | Start-up Time | ~ 3 sec | | Contrast /Brightness | Automatic/Advanced Image Processing | | Range to Detect Human Activity | Up to 1500 Feet (475 meters) | | Focus | Manual adjust | | Operating Temperature | -4°F to 185°F (-20°C to 85°C) | | Storage Temperature | -40°F to 221°F (-40°C to 105°C) |
Video: | Output Format | NTSC; Real-Time 30hz Frame Rate | | | PAL; Real-Time 25hz Frame Rate | | Output Resolution | NTSC 640x480 pixels for higher clarity | | | PAL 768 x 574 pixels for higher clarity | | Viewfinder Display | Monochrome | | Viewfinder Dimming | Continuous variable brightness |
|
