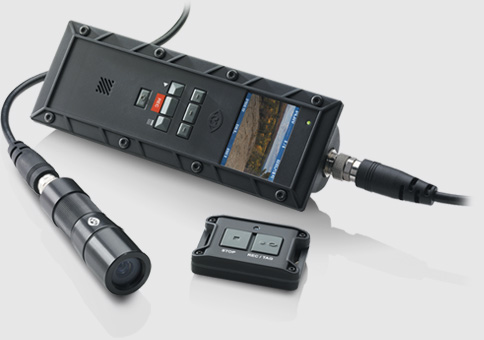

| Untitled document The POV.1 is built to capture hands-free video from your Point-of-View. From DVD-quality recording, to cut-and-splice editing, to online distribution, the process is simple and seamless. DESCRIPTION The POV.1 is a fully integrated point-of-view (POV) video system that's waterproof, dustproof, and shock-resistant. The system includes a mountable camera head, built-in video recorder, wireless remote and software for managing your point-of-view videos. Includes: POV.1 recorder with LCD display
Wide Angle camera head 110 degrees
LVDS cable
POV Manager software
Wireless Remote Control
4GB SDHC Card
USB cable
Analog A/V cable
Quick Start Guide
4 AA batteries
Carrying Case
Mounting accessories Features: High-quality wearable video camera records with 720 x 480 resolution at 30fps
Ergonomic user interface design enables single-handed operation and hands-free video capture
Modular mounting system provides camera stability while attached to helmets or other high impact gear
Components are shock-resistant, water-resistant and dustproof for use in the most hazardous environments HARDWARE The POV.1 records in 2 modes, LOOP or CLIP. In LOOP mode, the user TAGs and saves key video segments. In CLIP mode, video is continuously recorded as in traditional video recording. Recording, playback and set-up are controlled by buttons on the POV.1 recorder. Video:
Frame rates: 30fps, 25fps, 24fps, 15fps
Resolutions: 720x480, 720x400, 640x480, 360x240
Formats: MPEG4 AVI (DivX Codec) digital, NTSC/PAL analog
Exposure control: Automatic exposure control and white balance Imaging Hardware:
Sensor: Advanced CMOS sensor with electronic global shutter
Dynamic range: 75dB to 110dB
Sensitivity: 5 lux color sensor (Sub 0.1 lux monochrome sensor)
Processor: 32 Bit MIPS processor, 12 Bit image Optics:
Sensitivity: F/#2.0, Relative Illumination @full field 90%
Effective focal length: 2.97mm
Field of View: 110 degrees Audio:
Mic type: omnidirectional cable-mounted, -40dB sensitivity at 1kHz
Resolution: 16-bit half duplex
Sampling rate: 32kHz
SNR: 80dB
Speaker: Monaural 8ohm mylar, 0.7W Max Input/Output:
Recording capacity: Includes 1GB SD card, 2GB SD card capability
I/O Ports: SD card slot, USB 2.0 high speed (Mini -B), Mic-In, NTSC/PAL Analog TV/Audio Out SOFTWARE The POV.1 records its videos using MPEG4, so you can use your Windows XP, Windows Vista, or Mac computer to view them. Mac:
Plug the POV.1 into a USB port or insert the SD card into a card reader in your computer. After a simple installation of Quicktime components for MPEG-4, you'll be able to browse all of the videos, view them through Quicktime, and edit them in iMovie! PC:
Install V.I.O.’s POV Manager software: simple, intuitive software that allows you to view, edit, and share video easily. For example: A ‘POV recorder‘ window shows thumbnails of videos saved on the connected POV.1, and a ‘POV Library‘ window shows thumbnails of videos stored on your hard drive.
Drag and drop video clips from the POV Recorder to the POV Library to move them between the POV.1 and your computer, or drag onto a play area to play them back in either actual size or full screen.
See tags on the timeline during playback, and extract clips to the ‘Storyboard‘ window to quickly edit your video.
Use the ‘Share‘ function to email your clips and upload them to V.I.O. where they can be seen by your friends.
System requirements: USB 2.0 port or SD card reader
Windows: Microsoft Windows XP or Vista and a CD-ROM drive
Macintosh: Macintosh OS X 10.4.7 or higher
|
