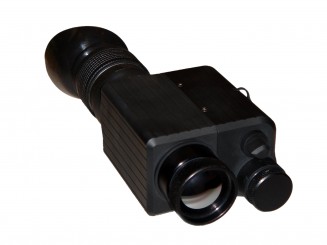

LVLPIR-36 Scope / GunScope
TPIR-36 is a family of low-cost FLIRs operating in long IR (7-14µ) range. Built to exacting standards, TPIR-36 are shock and water-resistant and will withstand the environment when used as a weapon scope. Fast detachable mount allows the unit to be interchanged with other optical equipment in seconds. TPIR-36 operates on two 3V (CR123) battery and has auxiliary port for operation on external battery, AC electrical outlets or vehicle cigarette lighters. A video output port allows the video to be displayed on an external video monitor or recorded and transmitted wirelessly. When used as a scope, TPIR-36 may be operated hand-held or tripod mounted and externally controlled through software. TPIR-36 is provided with field-changeable lenses - (25/50/75 mm) - and a 2x afocal adapter. Features: • TPIR systems are designed and manufactured for applications in public safety, fire and rescue, industrial, security and transportation.
• No light is needed to provide complete night and day surveillance.
• Plug-and-play compatibility with standard CCTV interfaces, systems and enclosures.
• Cost effective for large area coverage and perimeter security.
Specifications: | Focal length of the lens | 25mm/50mm (with 2x adapter) | | Spectral response | 7-14µ | | iT, temperature resolution | <.05°C | | Resolution of video output | NTSC | | Magnification | up to 4x (with 2x adapter) | | Field of view (V x H) | 17°x12° / 8°x6° (with 2x adapter) | | Focus | Manual | | Focus range | 5 meters to infinity | | Contrast/brightness | Automatic, enhanced | | Polarity control | White hot/Black hot | | Detection of target “man” | Up to 450/1000 meters (with 2x adapter) | | Identification of target “man” | 200/400 meters (with 2x adapter) | | Exterior | Water resistant, double seal | | Enclosure for outside use | Not required for normal use | | Video output | SMPTE-170 | | LCD viewer | Color NTSC | | Gun mount | Picatinny™ rail mount | | Size (in mm) | 135 (L) x 89 (W) x 58 (H) | | Weight | 470 – 600 gr with gun mount | | Power (external) | 1.8VDC - 6.0VDC, < 2.5W | | Color | Black | | Mounting bracket | 1/4-20 tripod mount (bottom) | | Power (internal) | Two “3V” batteries (CR123) | | Startup time | < 4 seconds | | Storage temperature | -40°C to 85°C | | Operating temperature | -10°C to 50°C | | External control | 12 pin Hirose™ connector |
|
