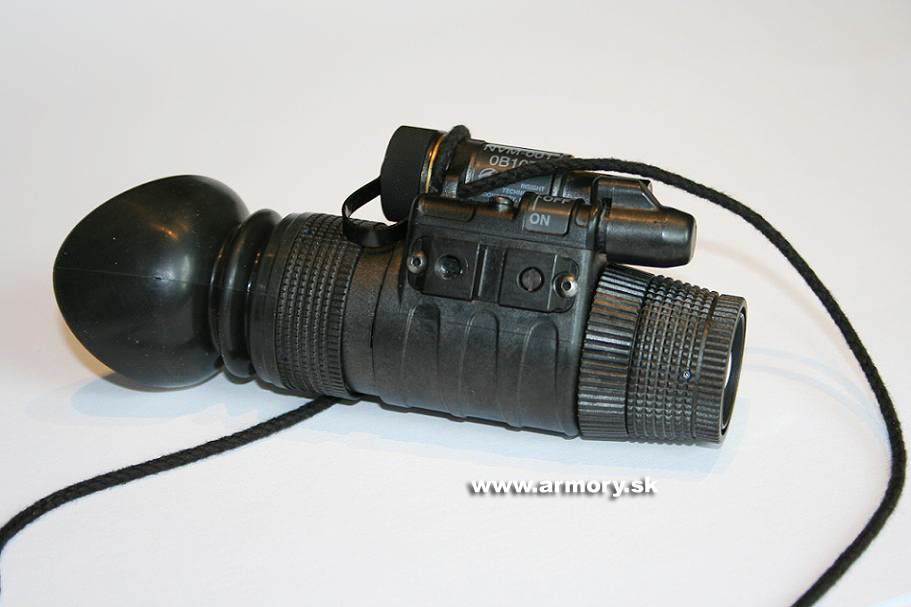

| Untitled document This device with image intesifier tube Gen.2+ DEP - Photonis in version XD4 has resolution min. 57 lp/mm, S/N Ratio min. 20, photocathode sensitivity min. 600 µA/lum and gain min. 30 000x. Lifetime is minimal 15 000+ hours. LVLMi-14 is the latest, lightest, and the most versatile night vision system on the market. Developed as an alternative to the US Military issue, it is capable of operating in depths of over 60 feet and uses multi-type (AA or CR123) single battery. IIT is available with features Automatic Brightness Control and Bright Light Protection. With the use of optional accessories, LVLMi-14 can be configured for any mission requirement: - Hand held spotting scope (can be used alone, with optional magnification lenses, or attached to a daytime spotting scope with the optional universal adapter)
- Hand held binocular (with the optional Dual Bridge Mount and with or without the optional magnification lenses and adapters)
- Hands free mono-goggle (with the included headgear or optional helmet mount)
- Hands free dual tube goggle (with the optional Dual Bridge Mount and the included headgear or optional helmet mount)
- Day/Night weapon sight (with the use of the included weapon mount and optional EoTech, or attached to an existing rifle scope with the optional universal adapter)
- Surveillance and night-time photography (with the use of the optional universal adapter)
Specifications:
Image Intensifier Generation 2+ DEP XD4
Resolution min. 57 lp/mm typical 64 lp/mm
Magnification 1x (3x optional)
Lens System 26 mm f1.2
FOV 40°
@1000 yards 2099'
@1000 meters 640 meters
Range of Focus 10" to infinity
25 cm to infinity
Detection Range 1148'
350 meters
Recognition Range 984'
300 meters
Diopter Adjustment +6 to -4
Weather Resistant Water Proof up to 66' (20m)
Camera/Camcorder Adaptable Yes
IR Illuminator Yes
Battery Type/Life AA or CR123 /40 hours
Dimensions 4.2" x 2" x 2.5"
107mm x 50mm x 64mm
Weight 9.2 oz
265 grams
Operating Temperature -40° F to 122° F
-40°C to +50°C
Warranty 2 years
Available Accessories: 3x A-focal Lens
3x Mil.Spec. Lens (requires adapter)
5x Mil.Spec. Lens (requires adapter)
Lens Adapter
Helmet Mount
Bridge Assembly
Universal Adapter
IR Spot/Flood
ELR Illuminator
Magnetic Compass
Shuttered Eyeguard
|
