This device with image intesifier tube Gen.2+ DEP - Photonis in version DST has resolution 65-69 lp/mm (typical ), S/N Ratio 22-26, photocathode sensitivity 675-736 µA/lum and gain between 9 850x - 11 070x. Lifetime is minimal 4000-6000+ hours. This is definitely not DEP 0 version. Real parameters DEP DST are in general much higher against minimal guaranteed parameters and parameters DEP 0 too.

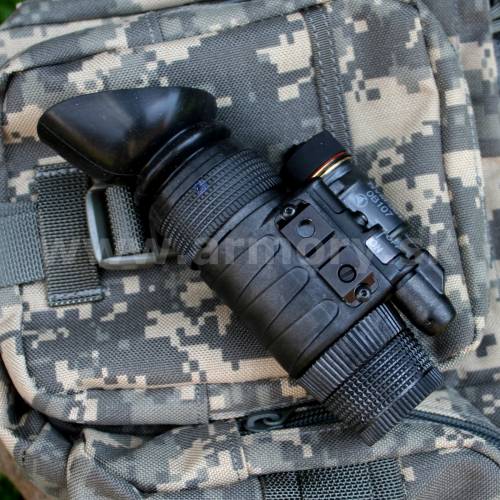

LVLMi DEP Gen 2+ DST is the closest you can get to Generation 3 performance, without paying the Generation 3 price. LVLMi-14 is the latest, lightest, and the most versatile night vision system on the market. Developed as an alternative to the US Military issue, it is capable of operating in depths of over 60 feet and uses multi-type (AA or CR123) single battery. IIT is available with features Automatic Brightness Control and Bright Light Protection. With the use of optional accessories, LVLMi-14 can be configured for any mission requirement:
● Hand held spotting scope (can be used alone, with optional magnification lenses, or attached to a daytime spotting scope with the optional universal adapter)
● Hand held binocular (with the optional Dual Bridge Mount and with or without the optional magnification lenses and adapters)
● Hands free mono-goggle (with the included headgear or optional helmet mount)
● Hands free dual tube goggle (with the optional Dual Bridge Mount and the included headgear or optional helmet mount)
● Day/Night weapon sight (with the use of the included weapon mount and optional EoTech, or attached to an existing rifle scope with the optional universal adapter)
● Surveillance and night-time photography (with the use of the optional universal adapter)
Specifications:
Image Intensifier |
Generation 2+ DEP DST |
Resolution |
65-69 lp/mm |
Magnification |
1x (3x optional) |
Lens System |
26 mm f1.2 |
FOV |
40˚ |
@1000 yards |
2099' |
@1000 meters |
640 meters |
Range of Focus |
10" to infinity
25 cm to infinity |
Detection Range |
1148'
350 meters |
Recognition Range |
984'
300 meters |
Diopter Adjustment |
+6 to -4 |
Weather Resistant |
Water Proof up to 66' (20m) |
Camera/Camcorder Adaptable |
Yes |
IR Illuminator |
Yes |
Battery Type/Life |
AA or CR123 /40 hours |
Dimensions |
4.2" x 2" x 2.5"
107mm x 50mm x 64mm |
Weight |
9.2 oz
265 grams |
Operating Temperature |
-40° F to 122° F
-40°C to +50°C |
Warranty |
2 years |
Included:
Soft Carry Case
Quick-Release Mil.Spec. Headgear/Helmet Mount Adapter
Quick-Release Weapon Mount
Mil.Spec. Headgear w/extra Brow Pads
Demist Shield
Sacrificial Window
One 3V CR123 Battery
One AA Battery
Lens Cleaning Paper
Operating Manual
Warranty Card
Available Accessories:
3x A-focal Lens
3x Mil.Spec. Lens (requires adapter)
5x Mil.Spec. Lens (requires adapter)
Lens Adapter
Helmet Mount
Bridge Assembly
Universal Adapter
IR Spot/Flood
ELR Illuminator
Magnetic Compass
Shuttered Eyeguard
Flat Top Weapon Mount
EoTech 551
EoTech 552
GGG-1190
Aimpoint CompM3
ARMS-22M68
ARMS-22M68SCR
GGG-1014
GGG-1191
Aimpoint 3x Magnifier
GGG-1233
3XMAG-TM
Pelican Hard Case 1400
Pelican Hard Case 1500
|
