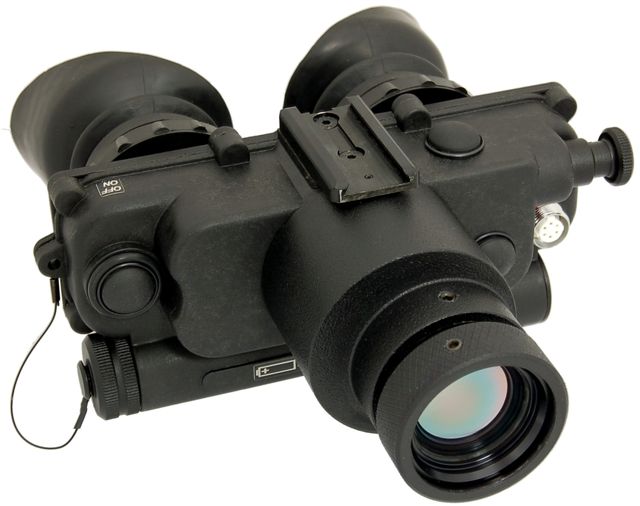

Untitled document Only for military and law enforcement customers. Thermal Imaging Goggles LVLlG-7 built by the most common and convenient “two eyes-one lens”, goggles type optical concept. LVLlG-7 enables law enforcement personnel to see heat signatures of objects, people and other objects. LVLlG-7 detects extremely small differences in temperature, so that User can distinguish people from their immediate surroundings. Unlike conventional Night Vision equipment, which requires light or special illuminators and is incapacitated by smoke, fog, and often other particulates LVLlG-7 generates high quality digital images on the darkest nights, even through smoke and fog. While darkness and camouflage can defeat night vision, suspects cannot hide from LVLlG-7. Their own body heat gives them away. The LVLlG-7 thermal imager is a powerful tool for tactical, surveillance and scene assessment applications. Its small size, light weight and convenient biocular eyepiece make the LVLlG-7 simple and yet, very effective in operation. Law enforcement and public safety officers can use thermal imaging technology to conduct hidden compartment searches, perimeter surveillance, marine or ground surveillance, safer flights, structure profiling activities, fugitive and rescue searches, disturbed surface investigations, pollutant searches and vehicle pursuits. In fire and rescue applications, thermal imaging is used to conduct scene size up, in-fire attack, search and rescue, hazmat assessments and post-fire overhaul.
LVLIG-7 Unique Features: • Digital Zoom 2X or 4X control. • Black Hot/White Hot polarity switch. • High Performance Color Displays. • Mil. Spec. Manual Gain (Brightness) Control - optional • Video-Out, External Power-In, Service USB-Out. • Small, Light Weighted, Rugged, Fully Sealed and Waterproof body. • Video-Out: standard RCA, cable included. LVLIG-7 Optical Features:
Lens Size 25 mm 16 mm 8.5 mm Field of View 11 x 8 deg. 17 x 12 deg. 32 x 24 deg. Magnification 1.8X 1.4X 1X Detection range of human figure 475 m 305 m 170 m Detection range of Working Car 900 m 550 m 300 m Lens Material Ge Ge Ge
LVLIG-7 Tech. Data & Characteristics: Thermal Imaging Core (TIC) | Amorphous Silicon Microbolometer 160 x 120 | Spectral Responce | 7-14 um | Refresh Rate | 30 Hz | Thermal Sensitivity | <50 mK | Video Signal Resolution | 640 x 480 NTSC768 x 574 PAL | Display Type & Resolution | 640 x 480 | Interpupillary Adjustments | 54-76 mm | Diopters Adjustments | +2/-6 | Powered By | 2 pc. AA lithium batteries | Continuous Operating Time on one battery | Up to 4 hours | Dimensions | 160 x 145 x 70 mm | Weight | 450 grams |
Additional Options Available: • B&W or Full colorization of displays. • 50 mm “snap-on” germanium lens. • Head Gear “PBS-7” type. (Flip Up) • Helmet Mount “PVS-7” type. • Helmet Mount “PBS-7” type. (Flip Up) • Shuttered, self closing Eye Guards. • External Li-Ion Battery Pack with charger (good for up to 7 hours continuous use). • Video-Out-To USB Adapter & Software.
|
