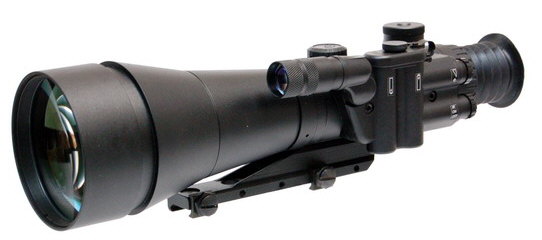

LVLD-480-6 Gen 2+ DEP XR5 Select represents combination of years of experience and the latest technological developments. The all-new design utilizes space-age materials to reduce the weight and improve recoil resistance. Standard features include a waterproof, nitrogen-purged housing, Mil-Dot illuminated Red-on-Green reticule, high-grade multi-coated optics, and a low profile heavy-duty Weaver mounting system. With guaranteed zero retention on heavy caliber weapons (including .50 BMG class), these are the systems of choice among Military and Law Enforcement professionals that have finally become available on the commercial market.
The picture about view through device LVLD-480-4 with DEP image intensifier tube 2+ DST was making by aiming distance of 200 metres. This device is equipped with image intensifier tube DEP in full Mil-Spec version with enhanced resolution min. 72 typical lp/mm. Specifications:
Maximum Recoil Rating | .375 H&H, .50 BMG and .416 Rigby | | Image Intensifier | Generation 2+ DEP XR5 ONYX | | Resolution | Min. 72 lp/mm | | Magnification | 6x | | Lens System | 165mm f2.0 | | FOV | 8˚ | | @1000 yards | 459’ | | @1000 meters | 140 meters | | Range of Focus | 98’ to infinity
30m to infinity | | Detection Range | 1558’
475 meters | | Recognition Range | 1312’
400 meters | | Reticule Type | Mil-Dot (illuminated red-on-green) | | Windage/Elevation Adjustments | ¼ MOA/click | | @100 yards | 1/4”/click | | Diopter Adjustment | +3 to -4 | | Weather Resistant | Water Proof | | Camera/Camcorder Adaptable | Yes | | IR Illuminator | Yes (optional) | | Battery Type/Life | AA(x2)/60 hours | | Dimensions | 13” x 3.6” x 4”
330mm x 91mm x 102mm | | Weight | 46 oz
1.3 kg | | Operating Temperature | -40° F to 122° F
-40°C to +50°C | | Warranty | 2 years |
|
