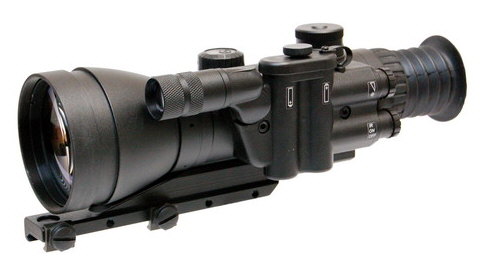

LVLD-480-4 Gen 2+ DEP XD4 AG

9 134.97 € with VAT

D740 ir.jpg
Untitled document

Only for military and law enforcement customers.

LVLD-480-4 Gen 2+ DEP XD4 AG represents combination of years of experience and the latest technological developments. The all-new design utilizes space-age materials to reduce the weight and improve recoil resistance. Standard features include a waterproof, nitrogen-purged housing, Mil-Dot illuminated Red-on-Green reticule, high-grade multi-coated optics, and a low profile heavy-duty Weaver mounting system. With guaranteed zero retention on heavy caliber weapons (including .50 BMG class), these are the systems of choice among Military and Law Enforcement professionals that have finally become available on the commercial market.

The picture about view through device LVLD-480-4 with DEP image intensifier tube 2+ DST was making by aiming distance of 200 metres.

This device is equipped with image intensifier tube DEP in full Mil-Spec version with enhanced resolution min. 57, 64 –72 typical lp/mm.


Maximum Recoil Rating

.375 H&H, .50 BMG and .416 Rigby

Image Intensifier

Generation 2+ DEP XD4 AG


Min. 57, 64 –72 typ. lp/mm



Lens System

100mm f1.5



@1000 yards


@1000 meters

175 meters

Range of Focus

33’ to infinity
10m to infinity

Detection Range

425 meters

Recognition Range

350 meters

Reticule Type

Mil-Dot (illuminated red-on-green)

Windage/Elevation Adjustments

¼ MOA/click

@100 yards


Diopter Adjustment

+3 to -4

Weather Resistant

Water Proof

Camera/Camcorder Adaptable


IR Illuminator

Yes (optional)

Battery Type/Life

AA(x2)/60 hours


9” x 3.5” x 4”
229mm x 89mm x 102mm


38 oz
1.1 kg

Operating Temperature

-40° F to 122° F
-40°C to +50°C


2 years
