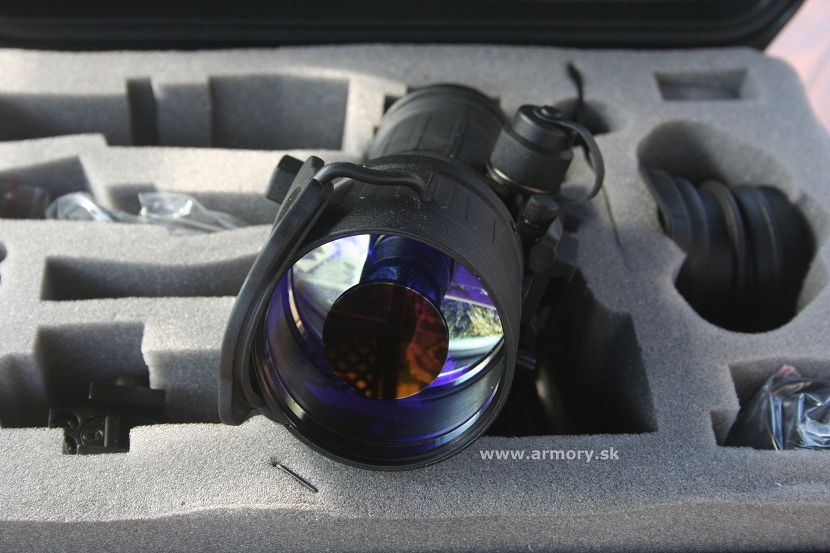

LVL PS-40 Gen.2+ DEP XD4 ONYX AG

7 840.00 € with VAT



PS40 2.jpg

Untitled document

ONYX version is equipped with white phosphor P45 and the result is black&white image. This device with image intesifier tube Gen.2+ DEP - Photonis in version XD4 ONYX has resolution min. 57 lp/mm, S/N Ratio min. 19, photocathode sensitivity min. 600 µA/lum and gain min. 30 000x. Lifetime is minimal 10 000+ hours. IIT is Autogated.

Representing the latest advancement in Night Vision Optics, the ATN PS40-2+ DEP gives your daytime scope Night Vision capability in a matter of seconds. The ATN PS40-2+ DEP mounts in front of a Daytime Scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN PS40-2+ DEP uses the latest in image intensifier tube technology for outstanding resolution and performance.

Precision optical alignment is essential for a front sight system to work properly. This is why each ATN PS40-2+ DEP is individually tested and aligned on an optical scale by our engineers to provide perfect alignment. The ATN PS40-2+ DEP is one of the most compact and lightweight NV systems in its class, at only 840 grams.

Features:

Easily changes daytime scope to Night Vision
Mounts in front of the daytime scope, no re-zeroing required
Multi-coated all-glass optics
Fast catadioptic front lens system
Large 40 mm output window
Lightweight and rugged
Comes with Quick Release Mount
Optional 7/8” weaver mount
Optional Scope Mounting System attaches the PS40 unit to the objective of the day scope (47-50; 56-58.7 mm diameter)

Specifications:

Total Darkness IR System  Yes
"SMART" Technology  No
IIT Generation  DEP XD4
Resolution: min. 57 lp/mm
Magnification  1x
Lens System  F1:1.44, 80mm
Proshield Lens Coating  Yes
FOV  12°
Exit Pupil  40 mm
Range of Focus  10 m to infinity
Diopter Adjustment  No
Controls  Direct
Remote Control  Yes
Automatic Brightness Control  Yes
Bright Light Cut-off  Yes
Infrared Illuminator  Detachable IR450 (optional)
IR Indicator  Yes
Low Battery Indicator  Yes
Power Supply  1x1.5 V AA type battery or
1x3 V CR123A type battery
Battery Life  60 hours (3 V)
30 hours (1.5 V)
Reticle System  No
Windage & Elewation Adjustment  No
Environmental Rating  Waterproof
MIL-STD-810  Yes
Operating Temperature  -20 to +50 °C
Storage Temperature  -50 to +50 °C
Dimensions  177x85x83 mm
7.0x3.4x3.3”
Weight  0.84 kg / 1.85 lbs
