| Untitled document Features and Benefits: Light weight and rugged design
Unmatching imaging performance
Image capture, mission reporting
Waterproof and shockproof
License free & rapid delivery Technical Specifications: Detector | Detector material | Uncooled FPA | Spectral range | 8~14μm | Pitch | 25μm | Pixels | 384×288 | NETD | ≤80mk | Optics | Lens | 61mm/F=0.8 | FOV | 9°×6.75° | Image Presentation | Video output | PAL | Frame frequency | 50Hz | Brighness/Contrast | Auto and manual control | Polarity | B&W,B&W inverse | Electronic zoom | ×2 | Display | 2 OLED view finders | Image Storage | | Type | Fixed 4GB SD card | File Format | BMP | Video Recording | Yes | Power System | Power supply | 110-240VAC adapter | Battery operating time | 3 hours continuous operation | Interfaces | | Command and control | RS232/422 | Video Output | Analog composite video output | USB2.0 | Image and video transfer to PC | Environmental Parameters | Operating temperature | -40℃ to 60℃ | Storage temperature | -50℃ to 70℃ | Humidity | Operating and storing 10% to 95%, non-condensing | Encapsulation | IP67 | Physical Characteristics | Size | 196mm×166mm×63mm | Tripod Mounting | 1/4’’-20 | Color | Black | Weight | 1.5Kg (without batteries) |

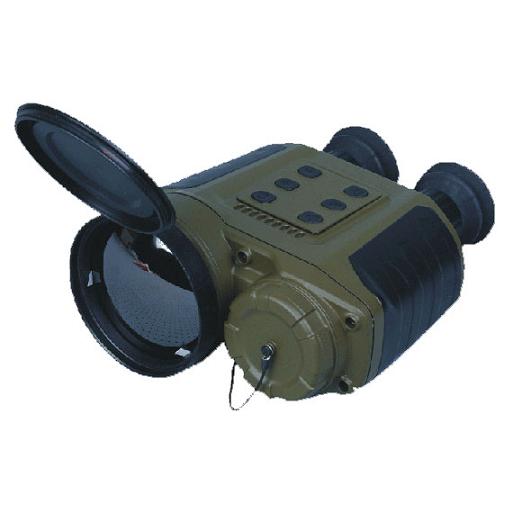

Images:
|
