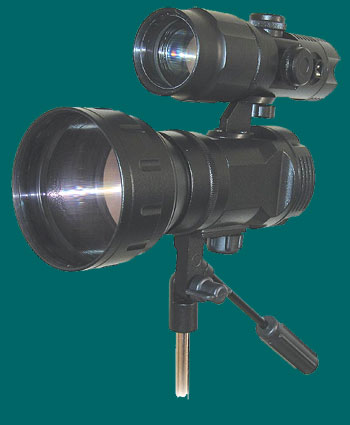

| Untitled document The SM-3NVTV is a high performance day/night surveillance system for long range video observation. It is able to operate during the day, as well as, night. Incorporating a high sensitive CCD camera and advance electronic processing, the unit is able to automatically adjust the contrast and brightness to suit the light level the camera is operating under. The SM-3NVTV has wide range of operation from 0.0005 lx (starlight) to 30 000 lx (solar day). Specially designed lens system and software for image processing allow viewing a human form on the distance more than 1000 meters at night. High-power laser infrared illuminator allows observing objects in active mode on the distance more than 1000 meters. | SPECIFICATIONS | | Magnification (Lens F1.5/110 mm) | 13X | | Max. distance of identification of a human form at illumination of 0.001 lx | 1500 m | | Resolution in daylight | 420 TV lines | | Resolution at night | 200 TV lines | | Field of view | 4.5 deg. | | Range of operation | 0.0005…30 000Lx | | Video output | Standard composite | | Power supply | 12V, 400mA | | Weight | 1.0 kg |
|
