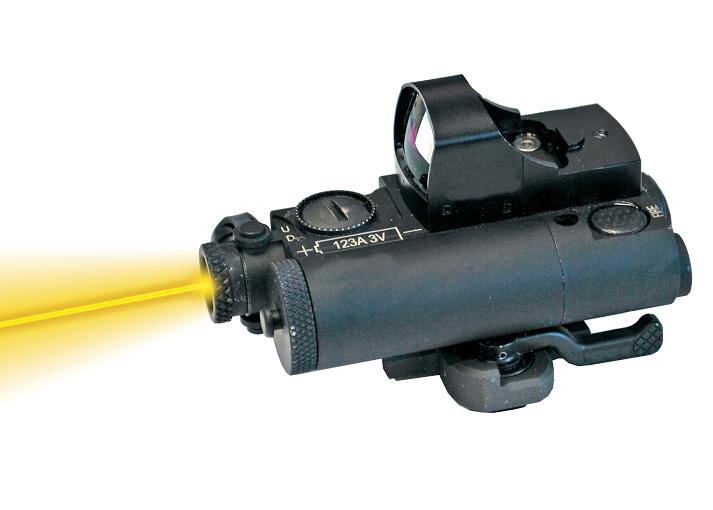

| Untitled document The ITAL-A is rugged, compact and manufactured with the latest cutting-edge technology. The A-series includes an adjustable focus infrared laser which allows the operator to adjust the size of the laser beam depending on mission requirements. When focused, the laser provides a continuous beam along the weapon's line of fire for precise aiming. When defocused, the beam spreads to provide improved illumination and situational awareness. Visible models are available with either a red Super Power Point laser pointer or a green Ultra Power Point laser pointer designed to improve range and visibility in daylight and at night. It offers faster target acquisition and is FIVE times more visible than traditional red lasers. The high power green laser is perfect for operations using SCBA and other DBRN equipment, and the waterproof metal housing allows for? complete decontamination. Additional features include a built-in double tap switch which activates the laser in either a momentary (single tap) or continuous ON mode (double tap), and mounting holes for an optional sub-miniature red dot sight or MIL-SPEC-1913 top rail. ITAL's are specifically designed for flat top rifles. Features: Specifically designed for flat top rifles
Rugged aerospace aluminum housing, MIL-SPEC Type III hardcoat anodized
Hi- and Lo-power modes of laser operation
Compact design minimizes weight
Low profile allows the laser to be mounted in front of scopes, holographic sights or night vision devices
Fully adjustable windage and elevation
Remote cable pressure pad switch and built-in momentary activation switch
Single tap enables momentary activation
Double tap instantly activates the laser in a continuous ON mode for 5 minutes or until pressed again Supplied with Quick release mount
7 inch remote cable pressure pad switch
Battery
Optional MIL-SPEC-1913 top rail and sub-miniature red dot sight available.
Neutral density filter, optical diffuser and pattern generators sold seperately
Manufactured in the USA Specifications: Mechanical Environment
Waterproof to 20 meters Limited Warranty
1 year Material
Anodized aircraft aluminum 6061T-6 Size
L 3.8 in x W 1.8 in x H 1.45 in
L 9.7 cm x W 4.6 cm X H 3.7 cm Weight (with battery)
5.5 ounces / 138.9 grams Electrical Battery
One 3-volt 123A lithium Battery Life
Up to 20 hours continuous Full Angle Beam Divergence
Visible Pointer: 0.3 mrad
IR Pointer: 0.5-75 mrad Laser Type
Visible Pointer: Class IIIa
Infrared Pointer: Class IIIb Power Output
Visible Pointer (Hi / Lo): <5mW / <1mW
Lo-Power IR Pointer (Hi / Lo): <5mW / <1mW
Med-Power IR Pointer (Hi / Lo): <40mW / <1mW
Hi-Power IR Pointer (Hi / Lo):<120mW / <7mW Range / Visibility
Visible Pointer (Night / Day): 500 meters / 30 meters
Lo-Power IR Pointer: 600 meters
Med-Power IR Pointer: 2000 meters
Hi-Power IR Pointer: 5000 meters Wavelength
Visible Pointer: 635nm
IR Pointer: 835nm
|
