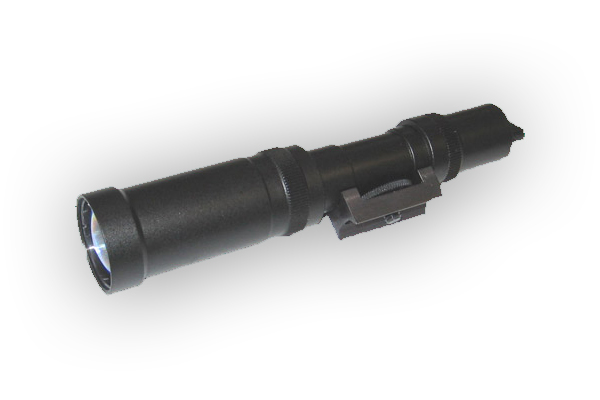

| Untitled document Illuminator is suitable for B/W or Day/Night CCD cameras which have infrared sensitive/compatible CCD sensor. It can be used hand held and also it is easily mounted. The IR illuminator has rotary switch with three positions for control of output power of radiation. Specially designed lens system with raster of micro lenses gives round and uniform spot and allows illuminating objects on distances up to 1000 meters (depends on sensor) in total darkness. Divergence of the beam can be adjusted from 2 deg. to 5 deg. SPECIFICATIONS | Power of radiation | 200mW regulated | | Wavelength of radiation | 920+/-5 nm | | Angle of radiation | 2…5 degrees | | Max. range | 500m | | Power supply | 3 V, CR 123 battery | | Battery life | 4…20 hours | | Weight | 150 g | | Dimensions (LXD) | 140X32 mm | | Reliability | 10 000 hours | | Temperatures range | -30…+40 deg. C |
CAUTION! Avoid direct exposure to beam. Laser class– III a. Safe distance is no less 100 meters. |
