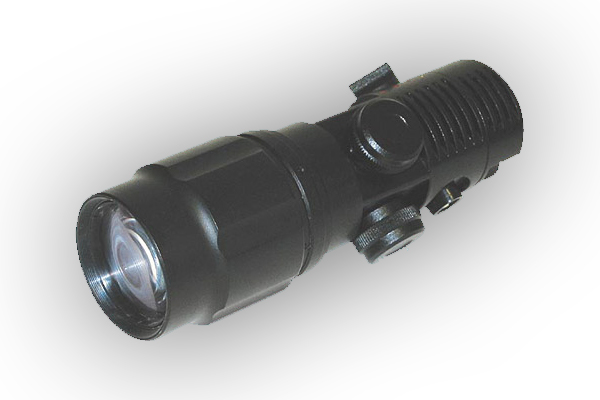

Untitled document The IR Illuminator LVL-530-1000-810 LAS is a powerful infrared illuminator designed to be used with CCD cameras and night vision devices for long-range operation at night. Specially designed lens system with raster of micro lenses gives round and uniform spot and allows illuminating objects on distances up to 2000 meters (depends on sensor) in total darkness. Divergence of the beam can be adjusted from 1 deg. to 5 deg. Output power of laser radiation is adjusted by the switch. Power supply works from DC 12 V. SPECIFICATIONS Power of radiation | IR-530-1000-810-250 mW | IR-530-1000-810-0.5W | Laser class | IIIb | Radiation wavelength | 810+/-5 nm | Output power, max | 250 mW (controlled) | 500 mW (controlled) | Max. range of operation | 1500 m | 2000 m | Divergence of radiation | 1 deg. to 10 deg. | Power supply | DC 12 V, 500mA | DC 12 V, 1A | Overall dimensions (LXD) | 150mmX 51mm | Weight | 0.4kg | Temperatures range | -10 deg.C… 40 deg.C |
CAUTION! Prevent from lighting with IR laser illuminator a human face closer than 150 meters away. |
