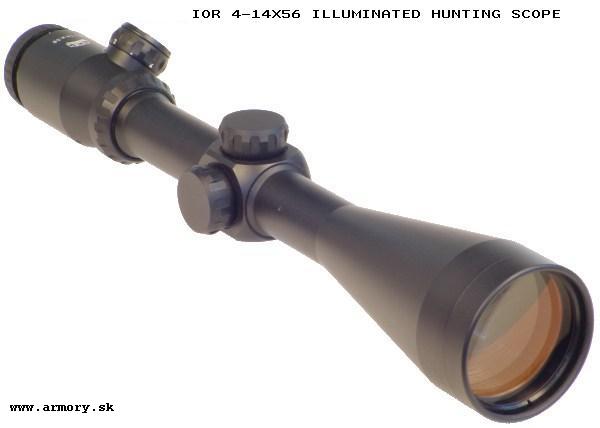

Untitled document - Photo engraved sporting reticle
- Full multicoating and anti-reflection treatment eliminating glare and maximizing light transmission
- One piece "O" ring sealed and nitrogen filled alloy housing
- 30mm tube diameter
- Finger-adjustable knobs
- Waterproof
- Fogproof
- Shockproof (even when employed on a .50 cal. rifle)
- High resolution optic system
- Magnum lock support system on reticle
- Superior optical glass by Schott Glasswerk, Germany
Description of reticle type: Distance between 2 horizontal big line is 1m/100m.
The big line has 0.5 MIL.
Distance between 2 big lines is 1 MIL.
Range finder is for 24 inches at 200, 400, 600, 800m.
The point diameter is 1 MOA green light up.
| Magnification: | 4 - 14x | | Objective-Lens Diameter: | 56 mm | | Tube diameter: | 30 mm | | Diopter adjustment: | +/-4 dpt | | Click adjustment: | 1/2 MOA | | Reticle adjustment range: | 82 MOA | | Reticle Type: | 4AD | | Illuminated reticle: | 4AD | | The batterie type: | Lithium 3V CR 2032 | | Lenght: | 343 mm | | Weight: | 980 g | | Optical components (glass): | Superior optical glass by SCHOTT (Germany) | | Antireflex treatment: | T3 multilayer coating (Carl Zeiss) | | Working temperature: | -30 to +50 | | Scope body material: | 6061-T6 alloy housing | | Surface coating: | 2 - layers matt black |
|
