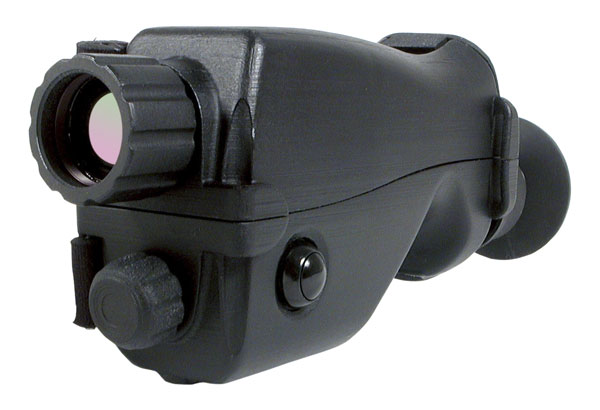

Untitled document Only for military and law enforcement customers. The ThermoVision FlashSight is a low cost, lightweight thermal imager packed with features and purpose built for the security market. The FlashSight features instant-on imaging and sees in total darkness, fog, smoke, and most obscurants. It has a bellows eyecup for covert operation and is easy to operate.
The ThermoVision FlashSight is an economical hand-held thermal imaging monocular. This lightweight surveillance tool delivers the ability to see in total darkness, and through most obscurants. Its low weight and slight form factor minimize operator fatigue, making it an excellent choice for security teams and covert operations. When scene dynamics would otherwise interfere with or impede your efforts, thermal imaging gives you the power to detect, recognize and respond accordingly. This fully featured imaging device was engineered to meet the demands and needs of the fast paced world of security and surveillance professionals. Up to 70 images can be stored internally and a live feed can be established at a remote location via the integral video output. The system can be operated in a silent mode to avoid detection at distances greater than 33.0' (10m), and the shuttered eyepiece can be deployed for under-cover close-up observation. The ergonomic layout of the controls allows for simple and comfortable one-handed operation, and it is powered by readily available 1.5V "AA" type power cells. • RUGGED, PORTABLE, AND EASY TO USE FlashSight is designed for field use with simple intuitive controls. It turns on at an instant and delivers crisp thermal imagery without constant adjustment. A variety of automatic image management features deliver sharply contrasted scenes. • VIDEO OUTPUT FlashSight provides a standard NTSC (or optional PAL) video output which allows operators to display thermal imagery on a standard monitor. This can offer additional mission flexibility for long duration surveillance, or temporary fixed installations. • LENS OPTIONS Wide and narrow lenses are available depending on your application. • STANDARD BATTERIES FlashSight uses commercially available AA batteries, so no special chargers are required. • OPTIONAL IMAGE CAPTURE FlashSight can capture and internally store up to 70 images at a time. • APPLICATIONS INCLUDE Security Surveillance Law Enforcement Public Safety Search and Rescue Border Patrol Target Acquisition Covert Operations Forward Area Line of Defense Specifications: Resolution | 160 x 120 Microbolometer (uncooled) |
Angle of View | Horizontal: 13.0° Vertical: 10.0° |
Field-of-View (@ 1000 Yds) | Horizontal: 683' (227m @ 1000m) Vertical: 525' (173m @ 1000m) |
Minimum Focus Distance | Not specified by manufacturer |
Lens System | 30mm Objective |
Video Output | Yes, NTSC RS170A (SMA connection) | PC Compatible | Yes | Power Source | Four 1.5 "AA" batteries | Weatherproofing | Waterproof | Dimensions | Length: 10.0" (254cm) | Weight | 1.9 lb (0.9kg) |
|
