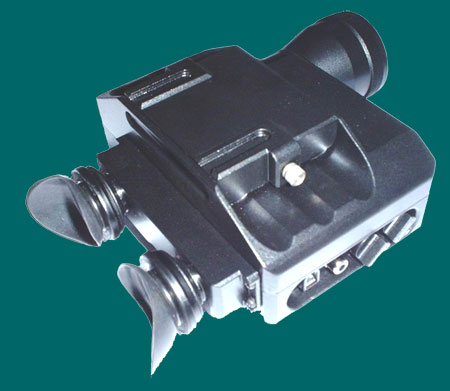

| Untitled document Built over exclusive digital technology the SM-3DB operates during the night as well as day without interruption of its operation. The binocular is based on the silicon high-sensitive CCD camera with special system of electronic accumulation and multiplication of a signal and built-in TFT-LCD monitor. The four-stage system of automatic control and superior anti-blooming allow seeing in a wide range of illumination without contrast control of the monitor.
The binocular has wide range of operation from 0.0005 lux (starlight) to 30 000 lx (solar day). The SM-3DB is almost similar to night vision devices of the second generation. Optional high-power IR LED illuminator allows viewing objects up to 300m in full darkness and with IR laser illuminator – up to 1000m. Binocular can be used for long-range observation, surveillance and registration of moving and immovable objects at the night and day on land or water. | SPECIFICATIONS | | Visual magnification | 8X | | Lens | F1.6/80mm | | Resolution in daylight | 420 TV lines | | Resolution at night | 200…420 TV lines
(depends on night illumination) | | Field of view | 6 deg. | | Max. distance of operation in daylight | 500m | | Max. distance of operation at night (at illumination 0.005 Lx) | 300m | | Battery | 8xAA size rechargeable or 8xAA size alkaline, 10..12V | | Battery life standard | 4 hours typical | | Video output | Standard composite video RCA connector | | Functions | Contrast; video output | | External power supply | DC 10…12V, 350mA | | Weight | 1.0kg | | Dimensions | (170x150x60) mm | | Temperature range | -10°C…+45°C |
|
