Application • Hunting / Night surveilance
• Night Photo / Video
• Patrol / Rescue / Search Features • 4x and 6x magnification
• Gen II+
• Shockproof even with heavy recoil (incl. .50 cal.)
• Special high light transmission optics
• Long eye relief
• Precision MIL-DOT reticle with adjustable brightness
• Precision tactical windage/elevation adjustment (15mm up to 25mm /100m)
• Powerful hazard-free IR illuminator (75 mW)
• Wide range of mounts
• Water resistance

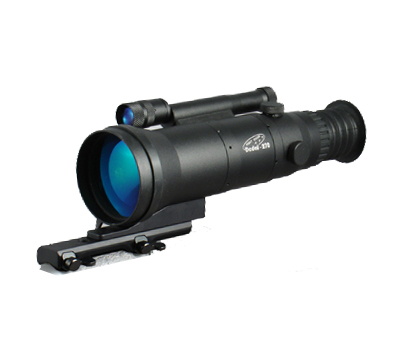

• Light weight Technical characteristics: General: | | Dedal-270(100) | Dedal-270(165) | | Magnification, x | 3.7 | 6.0 | | Field of view, deg | 10 | 6.3 | | Objective | 100 mmF/1.5 | 165 mmF/2.0 | | Eye relief distance, mm | 45 | | Diopter setting, D | +4, −4 | | Weight, kg | 0.9 | 1.2 | | The power supply — battery of a type AA | 2 pc | | Feed voltage, V | 3 | | Battery life, h | 60 |
Image intensifier tube: | Type tube | Gen. II+ | | Photocathode sensitivity, µA/lm | 300 | | Gain | 25 000 | | Resolution, lp/mm | 40 |
Conditions of the work: | Operating temperature | −40 °C to +50 °C | | Relative humidity, % | up to 98 |
|
