Company Dedal-NV was created in 1991 (in the period of strong competition among 50 Russian enterprises that worked in night vision systems production) on the base of Russian state defense industry enterprise in the course of defense industry conversion.

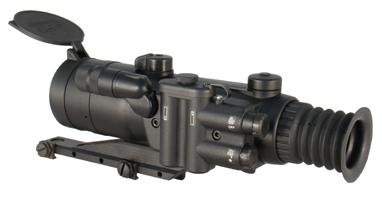

Application • Hunting / Night surveilance
• Patrol / Rescue / Search Features • Special high light transmission optics with inner focusing of the objective
• Long eye relief distance
• Illuminated red reticle type MIL-DOT
• Powerful hazard-free adjustable IR illuminator(75 mW)
• Wide range of mounts
• Water resistance
• Light weight and compact Technical characteristics: General: | | Dedal-180(64) | Dedal-180(100) | | Magnification, x | 1.8(3.6) | 2.8 | | Field of view, deg | 17(8) | 10 | | Objective | 64 mmF/1.2 | 100 mmF/1.5 | | Eye relief distance, mm | 45 | | Diopter setting, D | +4, −4 | | Overal dimensions, mm | 190×89×79 | 280×89×79 | | Weight, kg | 0.70 | 0.83 | | The power supply — battery of a type AA | 2 | | Feed voltage, V | 3 | | Battery life, h | 60 |
Image intensifier tube: | Type tube | Gen. I | | Photocathode sensitivity, µA/lm | min. 240 | | Gain | 800 | | Resolution, lp/mm | 32-40 |
Conditions of the work: | Operating temperature | −40 °C to +50 °C | | Relative humidity, % | up to 98 |
|
