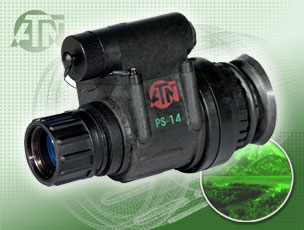

| Untitled document The Multi-use Night Vision monocular is a high performance modular, hand-held night vision monocular. It utilizes a single, Gen.2 intensifier tube to provide crisp, clear images under the darkest conditions. The PS-14 can be hand held or installed in a head-mount. The integrated IR illuminator enhances the ability of the user to read maps, and operate in confined spaces. Rugged and a top-notch performer the PS-14 is an exceptional choice for hands free usage. The PS-14 is available with a wide range of image intensifier options to meet a wide array of specification requirements. The PS-14 night vision monocular is a complex opticoelectronic system for individual use. The device consists of the objective lens assembly, eyepiece and the body. The body contains a image intensifier tube assembly with an integrated high voltage power source and the battery housing. Objective lens protective cover is intended to protect the objective lens from dust and scratches. It also will act as a daylight filter, allowing you to test the scope in daylight or other bright light situations. The pinhole in the center of the protective cover allows the user to check the operation ability of the device in daylight conditions. Here are the basic packages for the PS14: Standard Accessories
Monocular, Neck Cord, Soft Carry case Goggle kit 1:
ATN Head Mount assembly (optional) Goggle kit 2:
PVS-7 style headset mount (optional) 4x Bi-ocular kit:
Bi-ocular eyepiece, Afocal telescopic F/1.2, IR-450 6x Bi-ocular kit:
Bi-ocular eyepiece, F112 lens F/1.5, IR-450 Advanced package 1:
Camera adapter, 3x lens, Hard Shipping/storage case, Head Mount assembly, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield Advanced package 2:
Picatinny Weapon Mount Adapter, Camera adapter, 3x lens, Hard Shipping/storage case, Head Mount assembly, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield Select Package 1:
Head Mount assembly, Head mount adapter, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield Select Package 2:
Picatinny Weapon Mount Adapter, Head Mount assembly, Head mount adapter, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield Optional Accessories:
Camera/camcorder adapter, IR-450, Dual Bridge assembly, Magnetic Compass, Hard Shipping/storage case, IR Spot / flood lens Specifications: Intensifier tube | US Gen. 2+ | | Magnification | 1x (optional 3x, 5x) | | Detection range | 200 m/y | | Recognition range | 150 m/y | | Lens System | 24 mm; F1:1.2 | | Resolution | 32-40 lp/mm | | Field of view | 40 deg. | | Range of Focus | 1m to infinity | | Diopter adjustment: | +5 to -6 | | Power Supply | 1.5 volt AA size battery | | Battery Life | 45 hours | | Operating Temperature: | -51C to +49C | | Storage Temperature: | -51C to +85C | | Waterproof | 20 m for 1 hour | | Dimensions | 115 x 80 x 55 mm
4.5" x 3.2" x 2.2" | | Weight | 0.32kg (0.7 lb) |
This device is with another type of EOM (45-54 pl/mm) available. The price of this version is 2 605,72 € = 78 500 Sk. |
