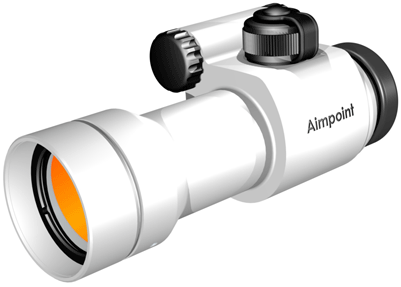

The Aimpoint CompC SM is a hybrid sight incorporating the new features of the CompC and the extremely fast target acquisition of a 7MOA dot from the well-known XD technology.

Mounted with the supplied special wide 30 mm ring that fits all Weaver bases. This sight is ideal when a short mounting base is required as the total length of the sight is only 4 3”. This makes the CompC particularly desirable whenever a lightweight, compact sight is required, such as for use on a “scout” rifle, carbine, or competition pistol.

Characteristics – Advantages

• Unibody construction - virtually indestructible
• Ideal for use on a scout rifle, carbine or competition pistol
• Special 30 mm wide ring that fits all Weaver bases is supplied
• XD Technology
• Unlimited field of view
• Silver metallic
• Parallax-free - No centering required
• Fogproof and submersible to 2 meters (7ft) water depth

TECHNICAL SPECIFICATIONS

OPTICAL DATA
SystemParallax Free, Reflex, Collimator System
MagnificationNo magnification (1X)
Eye relief Unlimited, No centering required
Reticle, size Red dot, diameter 7 MOA*
Optical coating Anti Reflex coating all surfaces. Multi-layer coating for reflection of red light
ELECTRONIC DATA
Battery TypeOne 3 Volt Lithium battery type 2L76 or DL1/3N
Battery Life, typical**100-1.000 hours dependent on setting. Storage 10 years.
Switch, dot brightness10 positions, Off and 9 daylight, of which 1 Extra Bright Extruded, high strength aluminium
MECHANICAL DATA
Material housingExtruded high strength aluminium
Surface finishAnodized, semi-matte, Silver Metallic
Material lens coversPolymer, black
Adjustment1 click = 10 mm at 80 meters = 13 mm at 100 meters = ½
Mounting1 ring, 30 mm diameter
DIMENSIONS
Length120 mm (4,7")
Width/height55 mm (2.2")
Ring width Max 30 mm (1.2")
Weight185 grams (6.5oz)
ENVIRONMENTAL DATA
Temperature Range-30ºC to +60ºC (-20ºF to +140ºF)
Water resistanceWaterproof to 2 m (7ft) water depth
*MOA (Minute Of Angle) 1 MOA = 30 mm at 100 meters = 1" at 100 yards **XD Technology
